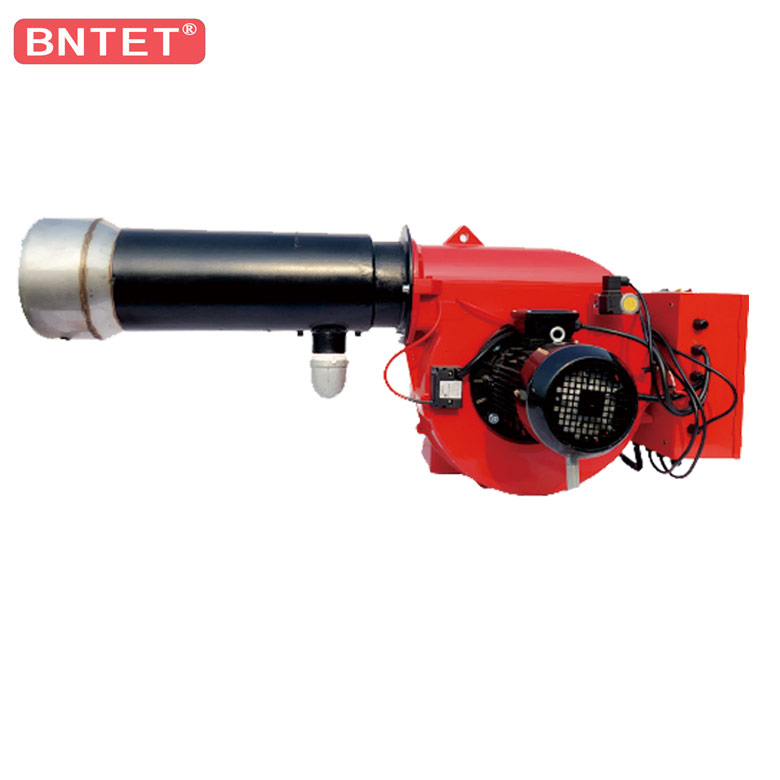

BNG250/300/350P/FC Gas Burner

BNG250/300/350P/FC Gas Burner

Fule:NG,LPG,Hydrogen

Brand:BNTET

Origin:Zhengzhou,China

Power(Kw): 7.5

Application:Boiler,dryer,oven,kiln

Products Details

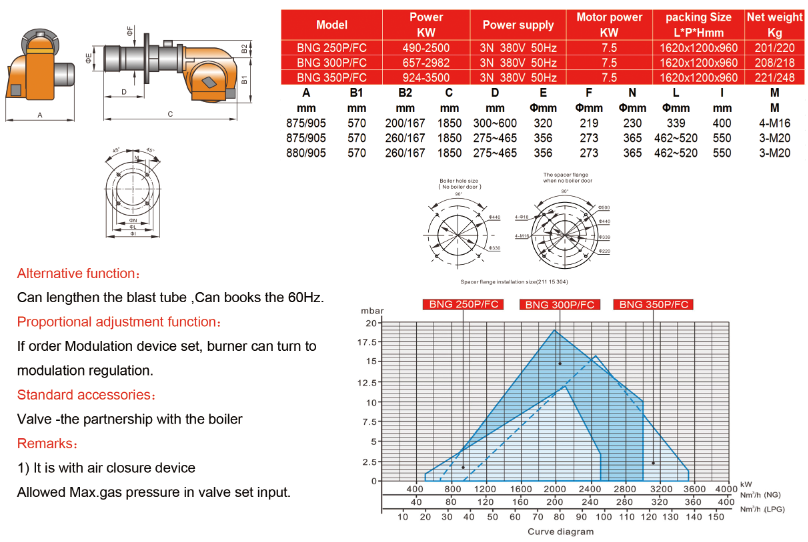

BNG250/300/350P/FC boiler Gas Burner Technical performance:

1. Gas-fired burner.

2. One/Two-stage working.

3. Air-gas mixing at blast-pipe.

4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5. Maintenance facilitated by the fact that the atomisation unit can be removed

 without having to remove the burner from the boiler.

6. Single stage manual flow adjustment.

7. Two stage Minimum and maximum air flow regulation for first and second

stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.

8. One flange and one insulating seal for boiler fastening.

9. Combustion air intake with air flow adjustment device.10. Sliding boiler coupling

flange to adapt to head protrusion of the various types of boilers.

11. Three-phase electric motor to run fan.

12. Flame presence check by ionisation electrode.

13. Electrical plant protection rating IP40.
