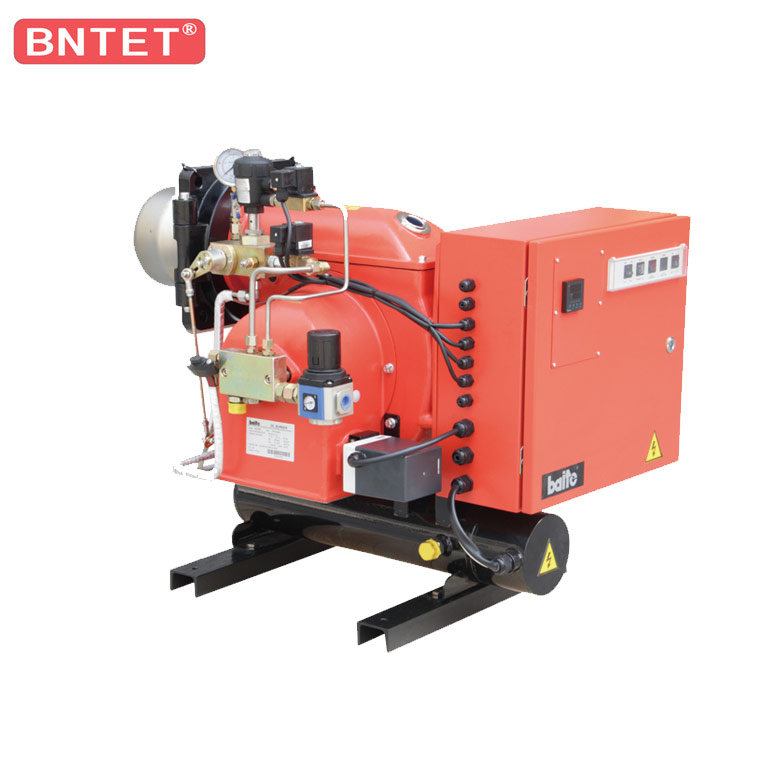

BNH20/30G Heavy Oil Burner Technical performance:

1. Heavy oil burner.

2. Two-stage sliding/modulating working.

3. Air or steam to sprayer.

4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5. The hinge connection, can be opened naturally.

6. Maintenance facilitated by the fact that the atomisation unit can be removed without having

 to remove the burner from the boiler.

7. The burner is paused, close the throttle to reduce the loss of furnace heat.

8. The servo motor which fixed with a cam can adjust the consumption for fuel and air.

9. With control valve and stop valve.

10. With the fuel pre-heater which installed with thermometer and adjustable temperature controller.

11. One flange and one insulating seal for boiler fastening.

12. Combustion air intake with air flow adjustment device.

13. Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.

14. Three-phase electric motor to run fan.

15. Flame presence check by photo resistance.

16. Electrical plant protection rating IP40.
