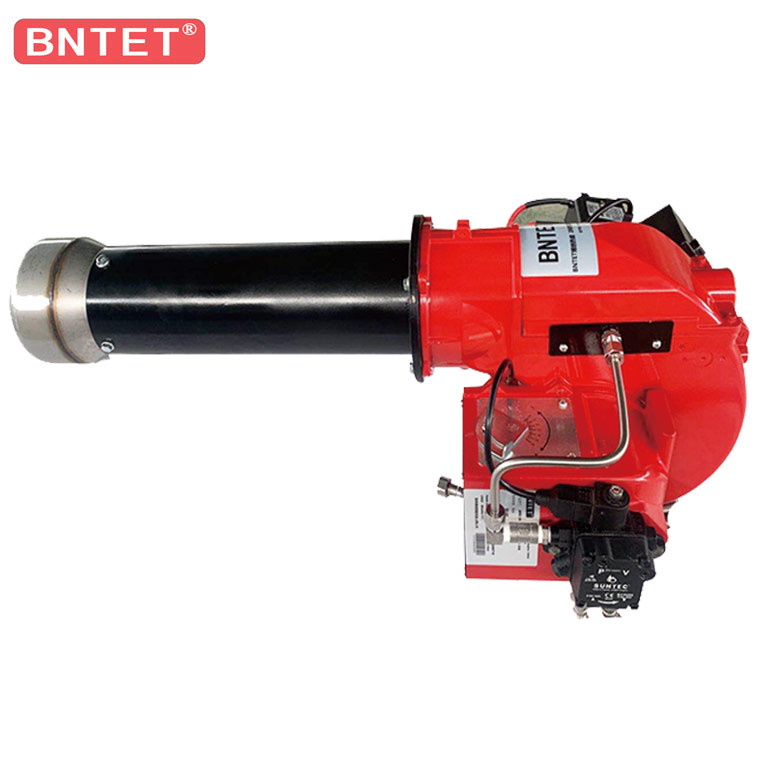

BNL18/26/35 DSG Light Oil Burner

BNL18/26/35 DSG Light Oil Burner

Fule:light oil,diesel,methanol



Power(Kw): 0.37


Products Details

BNL18/26/35 DSG  Light Oil Burner Technical performance:

1. Light oil burner.

2. Single/Two stage operation (on/off).

3. High pressure mechanical atomisation of fuel using nozzle .

4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5. Maintenance facilitated by the fact that the atomisation unit can be removed without having

 to remove the burner from the boiler.

6. Single stage manual flow adjustment.

7. Two stage air flow regulation for first and second stage by means of hydraulic regulator.

8. One flange and one insulating seal for boiler fastening.

9. Combustion air intake with air flow adjustment device.

10. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

11. Monophase electric motor to run fan and pump.

12. Flame presence check by photo resistance.

13. Electrical plant protection rating Ip40.
