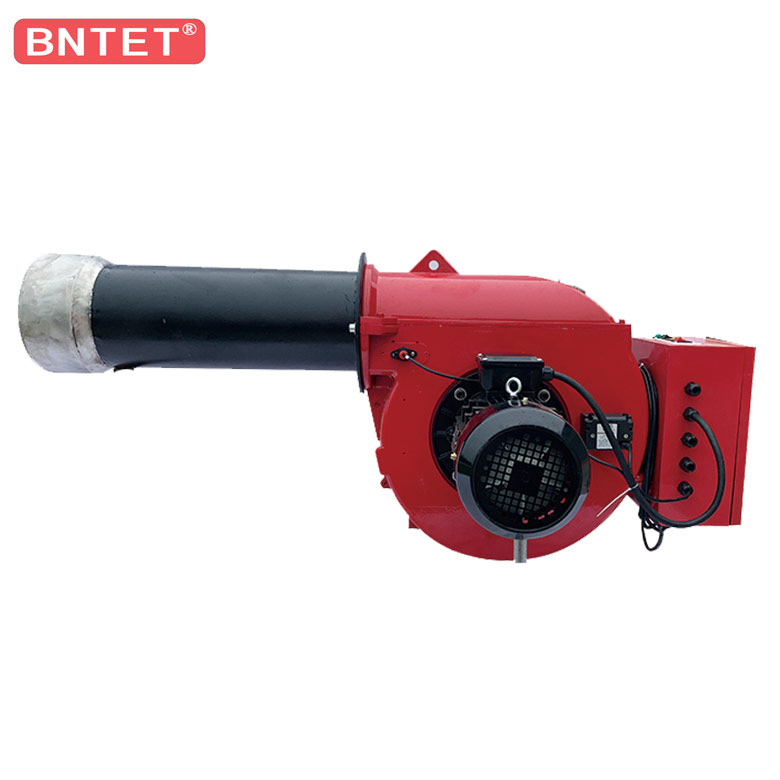

BNL75/100 P/FC Light Oil Burner

BNL75/100 P/FC Light Oil Burner

Fule:light oil,diesel,methanol

Brand:BNTET

Origin:Zhengzhou,China

Power(Kw): 1.1-1.5

Application:Boiler,dryer,oven,kiln

Products Details

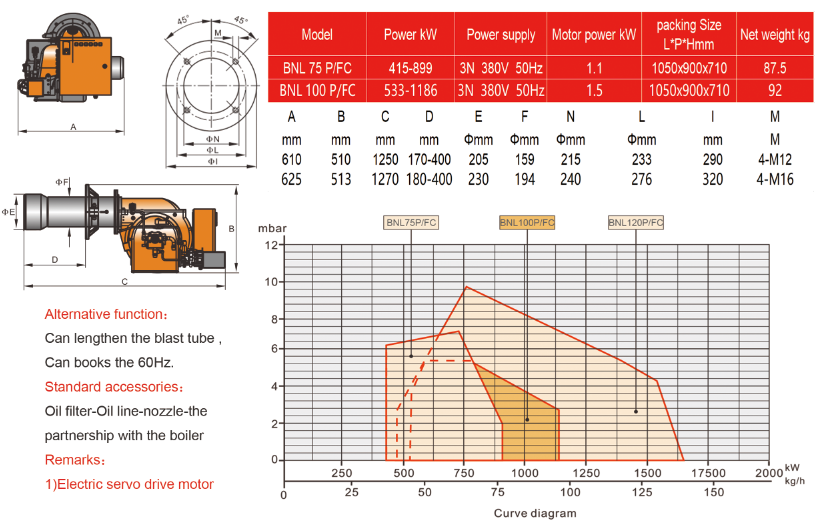

BNL 75/100 P/FC  Light Oil Burner Technical performance:

1. Light oil burner.

2. Two-stage siding/modulating working.

3. High pressure mechanical atomisation of fuel using nozzle.

4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5. The hinge connection, can be opened naturally.

6. Maintenance facilitated by the fact that the atomisation unit can be removed without havingto remove the burner from the boiler.

7. Two-stage Air flow regulation for first and second stage by means of hydraulic regulator. The burner is paused, close the throttle to reduce the loss of furnace heat.

8. Sliding/modulating The servo motor which fixed with a cam can adjust the consumption for fuel and air.

9. One flange and one insulating seal for boiler fastening.

10. Combustion air intake with air flow adjustment device.

11. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

12. Three-phase electric motor to run fan and pump.

13. Flame presence check by photo resistance.

14. Electrical plant protection rating Ip40.
